Keyde P100 Zadní Nábojový Motor | 36V 500W Výkonný Motor pro Elektrokolo | 1,8 kg

Wireless

€339,00

1/5

Keyde P100 Zadní Nábojový Motor | 36V 500W Výkonný Motor pro Elektrokolo | 1,8 kg

€339,00

Tax and shipping included

Highlights:

Pouze 1,8 kg – Ultralehký nábojový motor
Tichá jízda, výkonný výkon
Vestavěný řadič a snímač

BIKE COMPATIBILITY INFO (REQUIRED) — Select and enter below:
Spoke Holes: 24H / 28H / 32H / 36H

Použito 0/45 znaků

📦 Order Review: Within 24 hours

🚚 Dispatch: 1-3 business days

✈️ Air Freight: 8-15 business days

🏠 Delivered

📋 Please Note: During the order review process, we may send you a compatibility check via Email or WhatsApp. Please keep an eye on your inbox. (Make sure to provide your email at checkout, or a phone number with WhatsApp enabled.)

• EU/UK: Duties & Taxes Included - No hidden fees at checkout
• Global Air Shipping: 8-15 Days - Free to most regions
• Compatibility Check - Engineers verify fit before shipping
• Tracking Included - Stay updated on your delivery

View Shipping Policy

• 14-Day Money-Back Guarantee - EU/UK legal cooling-off period
• No Hidden Fees - No restocking or processing charges
• 1-Year Warranty - All products covered (selected items up to 2 years)
• Quick Refunds - Within 7-10 business days

View Full Return & Refund Policy

Your payment security is our priority. All transactions on diyebicycle.com are protected with:

✓ 256-bit SSL encryption - Bank-level security for all data transmission
✓ PCI DSS compliance - Industry-standard payment protection
✓ Secure payment gateways - Trusted by millions worldwide
✓ Zero data storage - Your card details are never stored on our servers

Privacy Policy

Your feedback drives our innovation. Share your experience with our e-bike conversion systems to help us serve you better.

Need assistance?
Our technical support team specializes in:
- Installation guidance
- Compatibility verification
- Performance optimization
- Troubleshooting

📧 Contact: support@diyebicycle.com
⏰ Response time: Within 24 hours

102±1

Diameter (mm)

1.8

Weight (kg)

36

Rated Voltage (V)

250

Rated Power (W)

500

Peak Power (W)

≥90

Efficiency (%)

30

Torque (Nm)

Parameter	P100	P110	S100	S110 / Thru-axle	P130	P160
Diameter (mm)	102±1	112±1	102±1	112±1	143±1	162±1
Weight (kg)	1.8	2.4	1.7	2.3	2.7	4.0
Rated Voltage (V)	36	36	36	36	30	30
Rated Power (W)	250	250	250	250	250	250
Peak Power (W)	500	750	300	500	350	400
Efficiency (%)	≥90	≥90	≥88	≥89	≥90	≥90
Torque (Nm)	30	45	20	35	25	35

About This Item

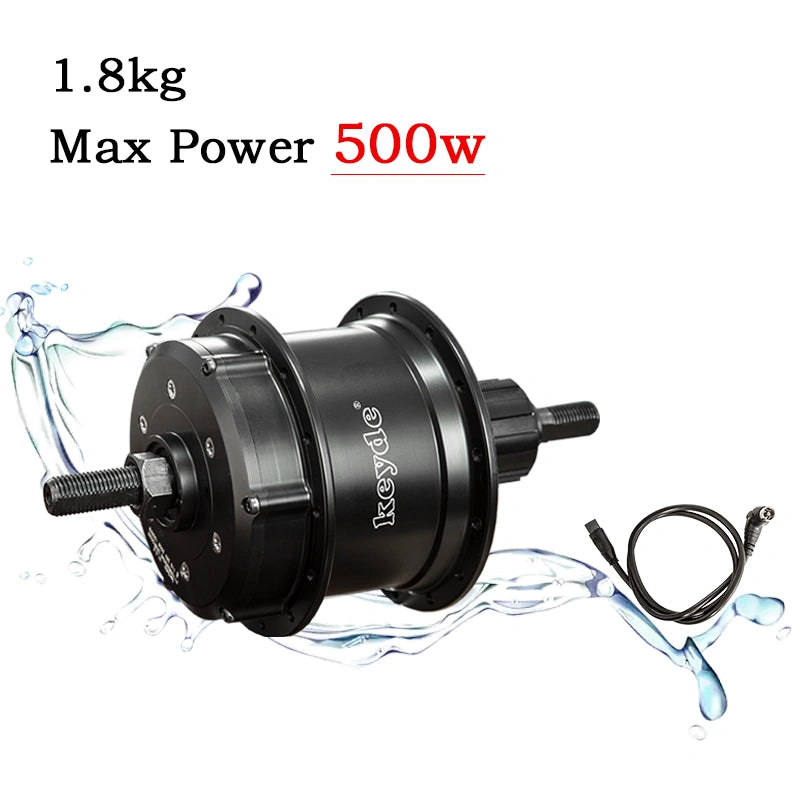

Keyde P100 Zadní Nábojový Motor – 36V 500W Výkonný Motor pro Elektrokolo

Zadní nábojový motor Keyde P100 je navržen pro jezdce, kteří vyžadují více. S hmotností pouhých 1,8 kg s vestavěným řadičem, snímačem a volitelným bezdrátovým modulem Bluetooth je P100 klamavě malý, ale mimořádně výkonný. S jmenovitým výkonem 36V 250W a maximálním výkonem 500W zvládá prudká stoupání i dlouhé vzdálenosti — vše v téměř naprostém tichu.

Dostupné ve dvou verzích:

Bezdrátová – Vestavěný řadič, snímač a bezdrátový komunikační modul (Bluetooth). Žádné kabely, plně bezdrátové ovládání.
Smart – Vestavěný řadič a snímač. Standardně dodáváno s chytrým displejem OLED130, připojeným přes drátové rozhraní pro spolehlivý a citlivý zážitek z jízdy.

Klíčové výhody

Dynamické snímání točivého momentu – P100 využívá systém dynamického snímání točivého momentu, který v reálném čase sleduje vaše šlapání a poskytuje přirozenou a intuitivní podporu výkonu při bezpečné a kontrolované jízdě.
Inteligentní detekce sklonu – Systém detekce sklonu automaticky rozpozná stoupání a odpovídajícím způsobem zvýší točivý moment — nemusíte šlapat tvrději do kopce, motor udělá práci za vás.
Ultralehký a kompaktní – Při hmotnosti pouhých 1,8 kg s vestavěným řadičem a snímačem je P100 jedním z nejmenších a nejlehčích výkonných nábojových motorů na trhu s minimálním kabelovým svazkem pro čistou instalaci.
Výjimečná účinnost – Pracovní účinnost až 90 %, snižuje tepelné ztráty a maximalizuje dojezd na každé nabití.
Mimořádný výkon v malém balení – Maximální výkon dosahuje 500W s točivým momentem přesahujícím 30 N·m — připraven na terénní stezky, horské výstupy a náročný terén.
Tichý provoz – Motor běží tak tiše, že je při jízdě venku prakticky neslyšitelný, pro přirozený pocit z jízdy na kole.
Bezdrátové Bluetooth ovládání – Volitelný Bluetooth komunikační modul zcela eliminuje kabely a umožňuje plně bezdrátové ovládání elektrokola.

KEYDE MOTOR

Built in Controller
Built in Clutch
Built in Wireless Module

MODIFICATION CONDITIONS

Frame rear fork groove diameter: 10mm
Frame rear fork opening: 135mm
Frame cassette flywheel: Disc brake/V brake, 7-11 speed

Available in two versions

Wireless – Built-in controller, sensor, and wireless communication module (Bluetooth). No cables, fully wireless control.
Smart – Built-in controller and sensor. Comes standard with the OLED130 Smart Ebike Display, connected via wired interface for a reliable and responsive riding experience.

Easy To Install

1. Install the motor wheel

2. Connect the motor with the cable

3. Install and connect the battery

4. Modification is complete

Built-In Torque System & Speed System

* When you start the torque mode for the first time, you need to perform a horizontal calibration. (two modes can be switched at will)

Torque Mode

Provides assistance based on the strength of the pedals. The harder you pedal, the greater the assistance, which is suitable for climbing hills.

Speed Mode

Provides assistance based on pedaling speed. The faster the speed, the greater the assistance, which is suitable for flat roads

Automatically Identifies Slope

After Horizontal Calibration

When using motors(support torque mode) for the first time, please perform horizontal calibration first. The steps are as follows:

After assembling the electric bicycle, place it vertically on a horizontal ground.
On the setting page of the corresponding meter or APP, click "H adjust"
If "OK" is displayed on the right, the horizontal calibration is completed and you can start to enjoy your riding.

EU CE Certification

Reliable Quality

Possessing Multiple International Invention Patents

Widely Recognized in The International Market

COMPLETE KIT MATCHING REFERENCE

Rear Motor Rim / Rear Motor
Battery
BBC1T1 Cable
APP / Display

(Note: the Keyde APP and the BTD260 display cannot be used at the same time.)

Shop This Kit View All Kits

NOTICE

Applicable Disc Brake Rotor

The applicable hole diameter is 44mm.
The applicable diameter for S100, P100 rear hub motors are 160mm.

Applicable Spokes

The spokes specification that the motors are adapted to is 13G.

Connecting Other Batteries

The motor voltage needs to be matched.
The max battery output current is ≥ 20A, P110 motor is ≥ 30A.
The positive and negative poles are as shown in the figure.

About Installation

Please use the disc brake screws provided with the motor to fix the disc brake rotor. Other screws may damage the motor. (Please ignore this step if it is motor with V brake)

Keyde P100 Rear Hub Motor Specification

Item No.	P100SWXRDC36/P100SWXRC36
Diameter	103mm ± 1mm
Width	135 ± 2mm
Brake types	Disc brake / V brake
Outlet position	Under the shaft on the right side
Free-wheel types	Cassette body
Gears	1-12s
Spoke no.	20H, 24H, 28H, 32H, 36H
Spoke types	13g / 14g
Controller	Internal
Sensor	Internal
Rated power	250W
Max. power	500W
Max. torque	30N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	>20%
Efficiency	>89%
Revolution	160-260RPM
Applicable wheel diameter	14-29 inch
Color	Black / Silver
Noise	<50dB
Operation temperature	-20 ~ 45°C
Storage temperature	-20 ~ 45°C
Waterproof & Dust-proof	IP65
Weight	1.8KGS
